High-Efficiency Chocolate Coating Pan/ Polishing Machinefor Ball Shape, Grain Shape Specifications :
| Payment Terms | L/C T/T Western Union |
| keyword | Chocolate coating pan, chocolate polishing pan, chocolate coating machine, chocolate enrobing machine, belt coater, chocolate belt coating machine |
High-Efficiency Chocolate Coating Pan/ Polishing Machinefor Ball Shape, Grain Shape Detail Introduction :

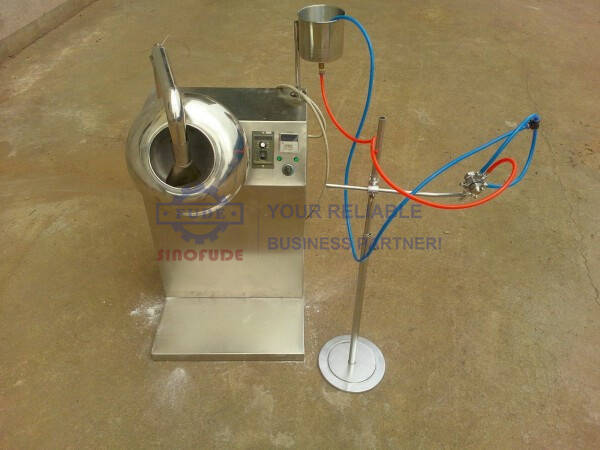

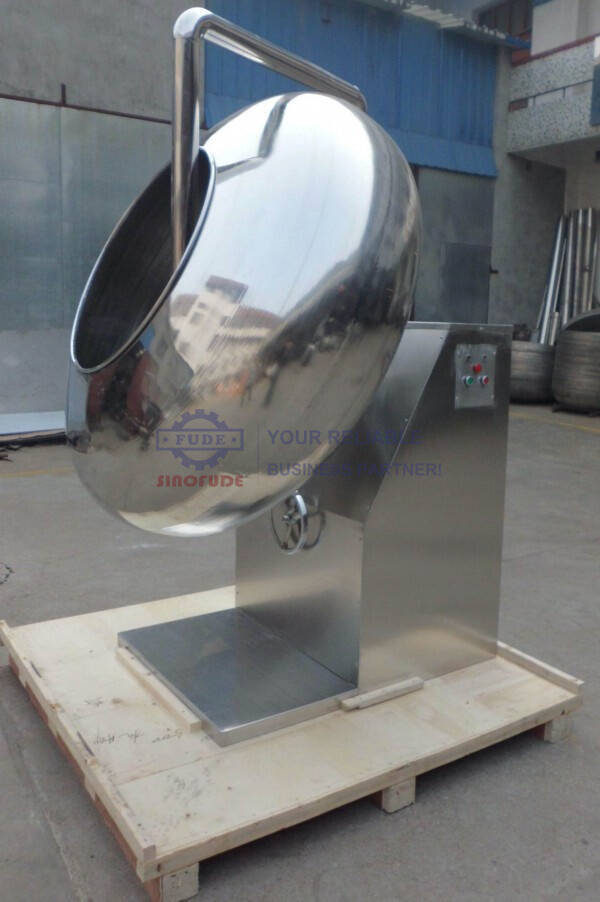

Chocolate Coating Pan
SINOFUDE supply the CBY Series coating pan, which is mainly used for ball shape, grain shape materials mixing, polishing, coating etc..in confectionery, pharmaceutical, or other light industry. Such as the chocolate bean, jelly bean, nuts coating, pills, etc..
This machine is mainly consists of frame body, worm and screw driving system, stainless steel pan, heater and fan (optional), controlling system. The pan is driving by worm wheel and motor. With the centrifugal effect the grains are rolling and attrition in the pan with other materials such as chocolate, sugar, glue materials etc..to be coated or polished.
Specifications:
MODEL | CBY1000 | CBY1250 |
Diameter (mm) | 1000 | 1250 |
Capacity (kg/batch) | 50-70 | 80-150 |
Rotary speed (r/min) | 32 | 28 |
Motor Power (kW) | 1.5 | 3 |
Fan Power (kW) | 0.15 | 0.3 |
Heater Power (kW) | 2 | 3 |
Shell size (L*W*H)mm | 1000*1000 *1500 | 1250*1200 *1820 |
Weight (kg) | 220 | 350 |
MODEL | CBY200 | CBY300 | CBY400 |
Diameter (mm) | 200 | 300 | 400 |
Capacity (kg/batch) | 1 | 2 | 5 |
Rotary speed (r/min) | 46 | 46 | 46 |
Motor Power (kW) | 0.37 | 0.37 | 0.37 |
Fan Power (W) | 750 | 750 | 750 |
Heater Power (kW) | 1.2 | 1.2 | 1.2 |
Shell size (L*W*H)mm | 500*350 *700 | 500*350 *700 | 550*400 *800 |
Weight (kg) | 36 | 37 | 38 |
Remark: The fan and heater, speed regulating is optional function in the coating pan. | |||
