Extruding Type Konjac Ball Production Line/ Agar Boba Production Line With SERVO Control System Specifications :
| Payment Terms | L/C T/T Western Union |
| Keyword | Konjac ball machine, Konjac boba machine, Agar ball making machine, crystal ball machine |
Extruding Type Konjac Ball Production Line/ Agar Boba Production Line With SERVO Control System Detail Introduction :

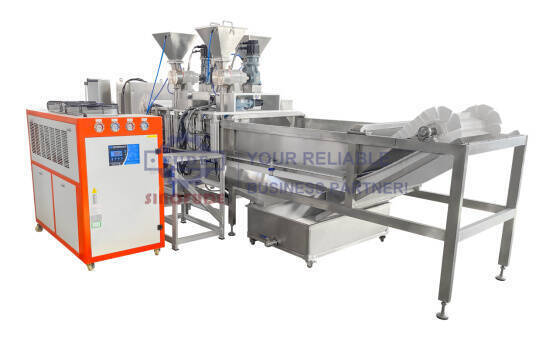

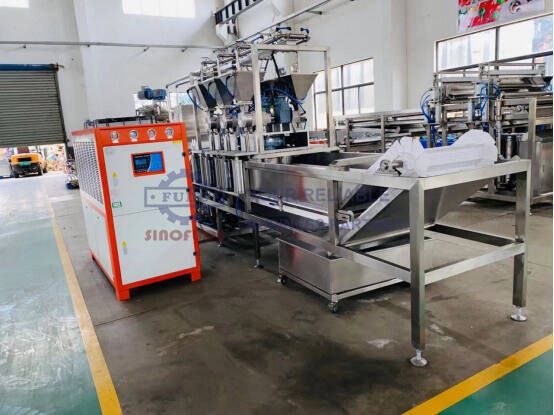

Extruding Type Konjac Ball Production Line
The Konjac ball/ agar boba production line is developed and patent protected by SINOFUDE and we are still the only factory that can manufacture this kind of machine in China so far. It adopts PLC and SERVO control system and with fully automatic processing design.
The whole production line is main made of stainless steel and it is fully complying with the food sanitation standards. The Konjac / agar boba that made by this machine is in beautiful round shape and can be any taste, bright color and weight is without variation.
The Konjac ball / agar boba can be used in bubble tea, juice, ice cream, cake decoration and egg tart filling, frozen yogurt, and etc. It is new developed and healthy products, which can be used in many food products items.
Other character of the production line:
1) PLC/SERVO process control available;
2) An Touch screen (HMI) is installed for easy operating;
3) The standard production capacity range is from 150 to 1000kgs/h;
4) The main parts is made of hygienic Stainless Steel SUS304, also can be customized to SUS316.
5) Different forming plate for different size konjac ball / agar boba making.
6) User friendly interface and automatic processing available.
| MODEL | CJQ200 | CJQ400 | CJQ800 | CBZ1200 |
| Capacity | 150-200kg/h | 300-400kg/h | 600-800kg/h | 900-1200kg/h |
| Konjac Ball weigh | According to ball diameter (Customized from 5~15mm or more) | |||
| Power Supply | 5.5kW | 7kW | 8.5kW | 10kW |
| Compressed Air | 0.5M3/min, 0.4~0.6MPa | 1.2M3/min, 0.4~0.6MPa | 1.5M3/min, 0.4~0.6MPa | 2M3/min, 0.4~0.6MPa |
| Machine size | 4500X1200X1850MM | 4500x1200x1850mm | 5500x1200x1850mm | 6500x1200x1850mm |
| Gross weight | 1200kg | 1600kg | 2500kg | 2600kg |
